Description

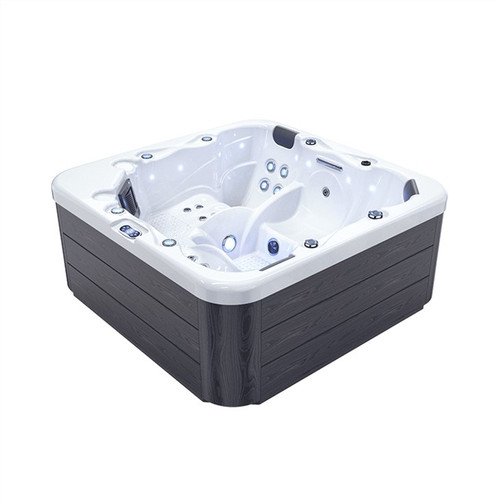

The Pacific
Where Luxury Meets Performance
The pacific spa is ideal for anyone wanting a compact luxury spa that is suited to all occasions. Its pump provides a powerful, yet relaxing massage experience through its 34 jets. This spa’s specific dual recliner layout provides ample room for even your tallest family members and guests. This spa also has all your entertainment needs covered as the parameter lighting and LED lit waterfall make this 2m x 2m spa come alive.
Features
-
Seating Capacity: Comfortably seats up to 5 people, ideal for intimate gatherings.
-
Dimensions: Generous 2000 × 2000 × 820 mm size, providing ample space for relaxation.
-
Jets: Equipped with 34 two-tone stainless steel jets to target key muscle groups.
-
Filtration System: Features a 50 sq.ft RD Micro Filter for efficient water purification.
-
Sanitisation: Utilises an ozone sanitiser with RD mixing chamber to maintain clean water with minimal chemical use.
-
Control System: Operated by a Davey 601-1.5kW controller for user-friendly management.
-
Heater: Includes a 1.5 kW heater for optimal water temperature control.
-
Cover & Steps: Comes with a high-density foam insulated cover; optional steps and cover lifter available for easy access.
Oxone Filtration
The design of the Diamond spa water filtration system is unique. It has pipes all around it that link to numerous cleaning machines. Every area of the spa is cleansed when the water is circulating.
This system's first goal is to remove impurities and debris from the water. As a result of this strategy, the spa may provide a better water flow environment for its customers. Diamond spas are designed to keep spa water fresh for up to 6 months if cared for properly by following guidelines and installing good sanitizing components!
Spas cater to people's individual needs, so allowing them to adjust their own settings will be beneficial to them. As a result, Ponfit has been working with the best spa system manufacturers in the world, Balboa® Water Group and SpaNET®, for years, and has developed a specialized system that is implemented in every spa we produce. The former provides more power in service with both dealers and users, while the latter offers an exclusive design with Ponfit for piping technology and energy saving.
In the filtration design, Balboa® provides a good quality heating element and a convenient setting for users, while SpaNET® is designed with Ponfit to offer users a smart and power-variable heating component that can go up to heat water fast and save energy at the same time. They both perform well in their fields, and the choice is up to you! Enjoying your hydrotherapy in the morning, while your spa water has been cleaned at night!
Smart System for Smart Parts
Spaquip Spa Power 601
Operates: 1 x 2spd pump or 1 x single speed pump + Auxillary (1 spd pump or 1 spd blower) 1 x variable speed blower (if Auxillary not used) Circulation pump Ozone LED Light
NB - electrical cords for pump, blower, ozone , etc are sold seperately. 230v, 10A, 1.5kw heater.
Supplied fitted with 10A power cord.
These 10A spa controllers have restrictions on pump sizing as below:
Maximum single speed pump amerage for 10A is 4A / 1-1.5hp max.
Maximum 2 speed pump amerage for 10A system is 7A / 2hp max.
Maximum pump size for a 2nd pump used in lieu of a single speed air blower with a single speed pump 1, is 6A.
Single speed pumps rated 1.5hp + or two speed 2.5hp plus cannot be used on a 10A circuit. A dedicated 15+ amp circuit is required.
Specs
Size(mm) |
2000*2000*820 |
Seating Capacity |
5 |
Water Capacity(L) |
1300 |
Empty Weight(kg) |
335 |
Full Weight(kg) |
1635 |
Acrylic |
Aristech |
2-tone Stainless Steel Jets |
34 |
Air Valve |
2 |
Suction |
3 |
Pumps-Davey Australian |
1*2.5hp(2-speed) |
Ozone With RD Mixing Chamber |
standard |
Led Master Light |
1 |
Led Slice Waterfall +Control Valve |
1 |
Led Cup Holder |
5 |
Rim Led Lights |
8 |
Davey Controller |
601-1.5kw |
Electrical Amp/Breaker |
10 amp |
API PS Cabinet |
standard coffee & grey |
Real Cedar Wood Cabinet |
option |
Shell lnsulation(2cm) |
standard |
2cm Cabinet and Floor lnsulation+Foil Insulation |
standard |
Drainage ( Magic Plastic ) |
Magic Plastic |
Filtration(with RD Micro Filter) |
1*50sf |
Bottom Tray ( PE ) |
PE Bottom |
RD Cover(2years Replacement Warranty) |
standard |
Magic Slice Valve |
for pump and controller |
Mp3+ Aquatic Av Speaker (or Subwoofer ) |
option |
Cover Lifter |
option |
Step |
option |
Safety Rail |
option |
Spa Bag |
option |
Spa Covers
High-density foam is used to make the spa cover and is included in the cost of your spa!
Diamond spas come with a foamy insulated cover as well as a kid lock. Due to the fact that hot air rises, a cover is required to prevent heat loss. A high density foam cover is ideal for protecting your spa; it seals in heat while also including a built-in kid lock for added safety!
